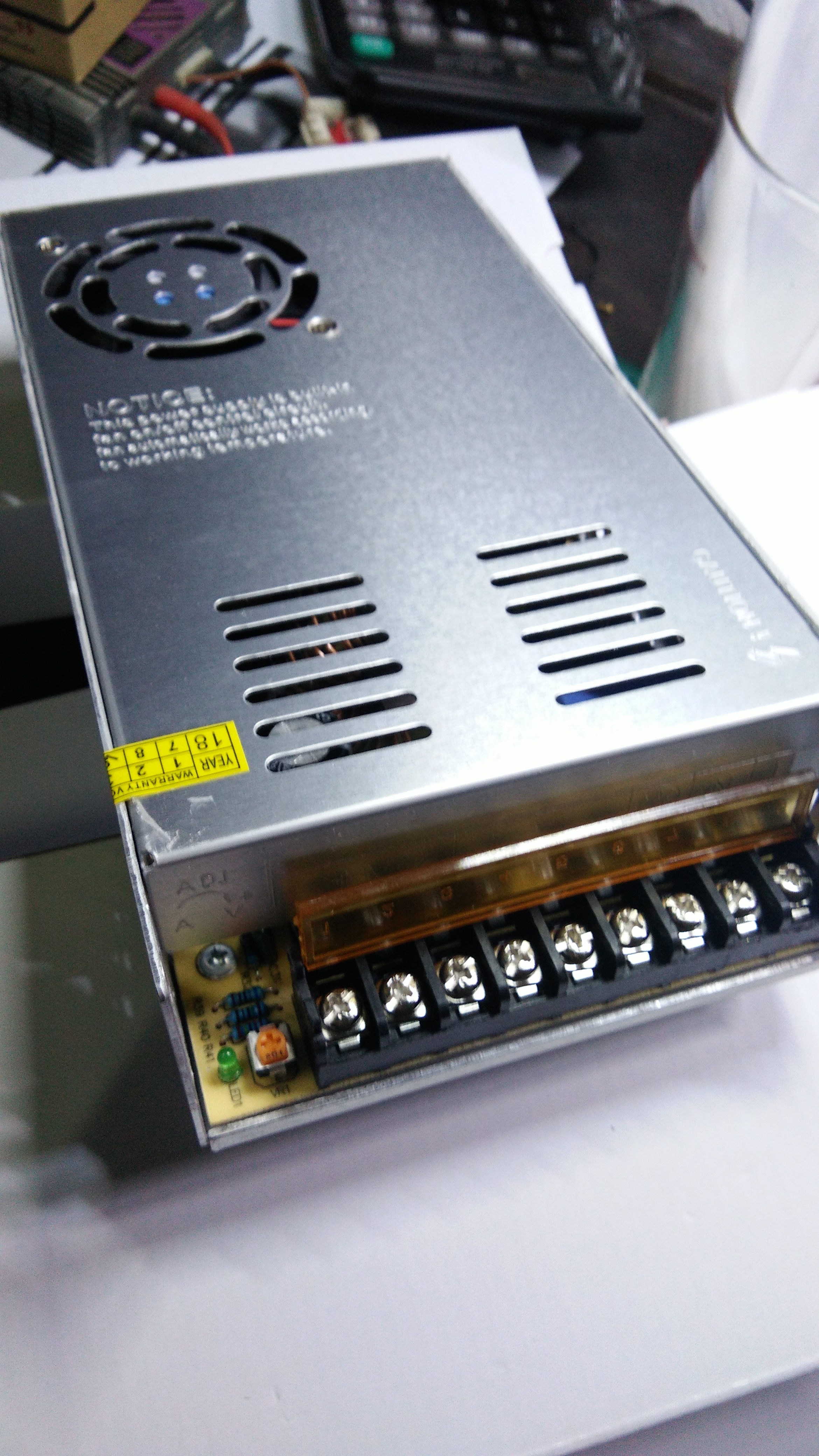

12V 30A (220V to 10V-14v) switching power supply (S-480-12) (S-500-12)

Model

S-480-12

INPUT

AC input voltage range(V)

AC/220V±15%

Input current(A)

10.5A/230VAC

Frequency (Hz)

50/60Hz

Efficiency

81%(230VACFull Load)

Inrush current(A)

cold start 20A/115V AC 40A/230VAC

Leakage current(mA)

<3.5mA/240VAC

output

Output Voltage(V)

12V±0.5DC

Voltage Regulation

±10%

Output Current(A)

30A

Current  Range (A)

0-40A

Rated Power(W)

480W

Start time, hold-up time(ms)

300ms/230VAC 115VAC at full load

Rise time(ms)

50ms at Full Load

Ripple/Noise(MVP-p)

120mVp-p

Environment

working Temperature (°C)

-10 centidegree to+60 centidegree

Storage Temperature(°C)

-20 centidegree to+85 centidegree

Humidity

20% to90%RH non condensing

Protection

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Others

Size  L*W*H(mm)

215*112*50mm

Weight

855g
